Aquarius Data

Very simple program, just mapping some salinity data from Aqarius (available in the RIDDC ERDDAP server). This code is a good starting point for learning how to work with the ERDDAP data through a Python notebook.

#the following installations and imports are necessary to run the program (once the installations are done they can be commented out):
!pip install netCDF4
!pip install erddapy
!apt install libproj-dev proj-data proj-bin
!apt-get install libgeos-dev
!pip install cython
!pip install cartopy
!pip install display
from netCDF4 import Dataset as NetCDFFile
import matplotlib.pyplot as plt
import numpy as np
import cartopy.crs as ccrs

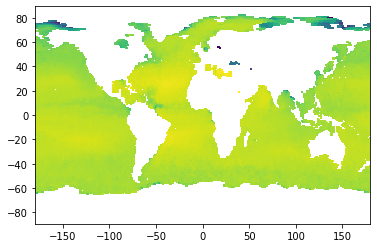

3 month data

#this cell does mapping for the 3 month Aquarius data
mydata = NetCDFFile('https://pricaimcit.services.brown.edu/erddap/griddap/jplAquariusSSS3MonthV5') #this gets the data from ERDDAP
#the first part of the url is 'https://pricaimcit.services.brown.edu/erddap'. That's just the riddc erddap webpage.
#the second part of the url is '/griddap'. That tells it whether you want gridded or tabular data (for tabular it would be '/tabledap')
#the third part of the url is '/jplAquariusSSS3MonthV5', which gives the Dataset ID
#the following lines define some data variables:
lat = mydata.variables['latitude'][:]
lon = mydata.variables['longitude'][:]
time = mydata.variables['time'][:]
sss = mydata.variables['sss'][:]
#plotting:
plt.figure(1)
plt.pcolor(lon,lat,sss[0,:,:])

<matplotlib.collections.PolyCollection at 0x7fb4f7fcab00>

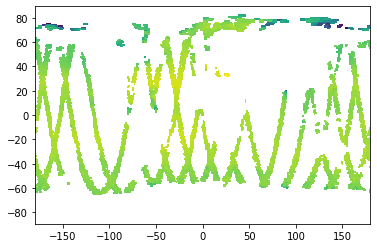

7 Day data

#this cell does mapping for the 7 day Aquarius data
mydata = NetCDFFile('https://pricaimcit.services.brown.edu/erddap/griddap/jplAquariusSSS7DayV5')
lat = mydata.variables['latitude'][:]
lon = mydata.variables['longitude'][:]
time = mydata.variables['time'][:]
sss = mydata.variables['sss'][:]
plt.figure(1)
plt.pcolor(lon,lat,sss[0,:,:])

<matplotlib.collections.PolyCollection at 0x7fb4f6f2c198>

Daily data

#this cell does mapping for the daily Aquarius data
mydata = NetCDFFile('https://pricaimcit.services.brown.edu/erddap/griddap/jplAquariusSSSDailyV5')
lat = mydata.variables['latitude'][:]
lon = mydata.variables['longitude'][:]
time = mydata.variables['time'][:]
sss = mydata.variables['sss'][:]
plt.figure(1)
plt.pcolor(lon,lat,sss[0,:,:])

<matplotlib.collections.PolyCollection at 0x7fb4f5cb6668>

Monthly data

#this cell does mapping for the monthly Aquarius data
mydata = NetCDFFile('https://pricaimcit.services.brown.edu/erddap/griddap/jplAquariusSSSMonthlyV5')
lat = mydata.variables['latitude'][:]
lon = mydata.variables['longitude'][:]
time = mydata.variables['time'][:]
sss = mydata.variables['sss'][:]
plt.figure(1)
Image = plt.pcolor(lon,lat,sss[0,:,:])
